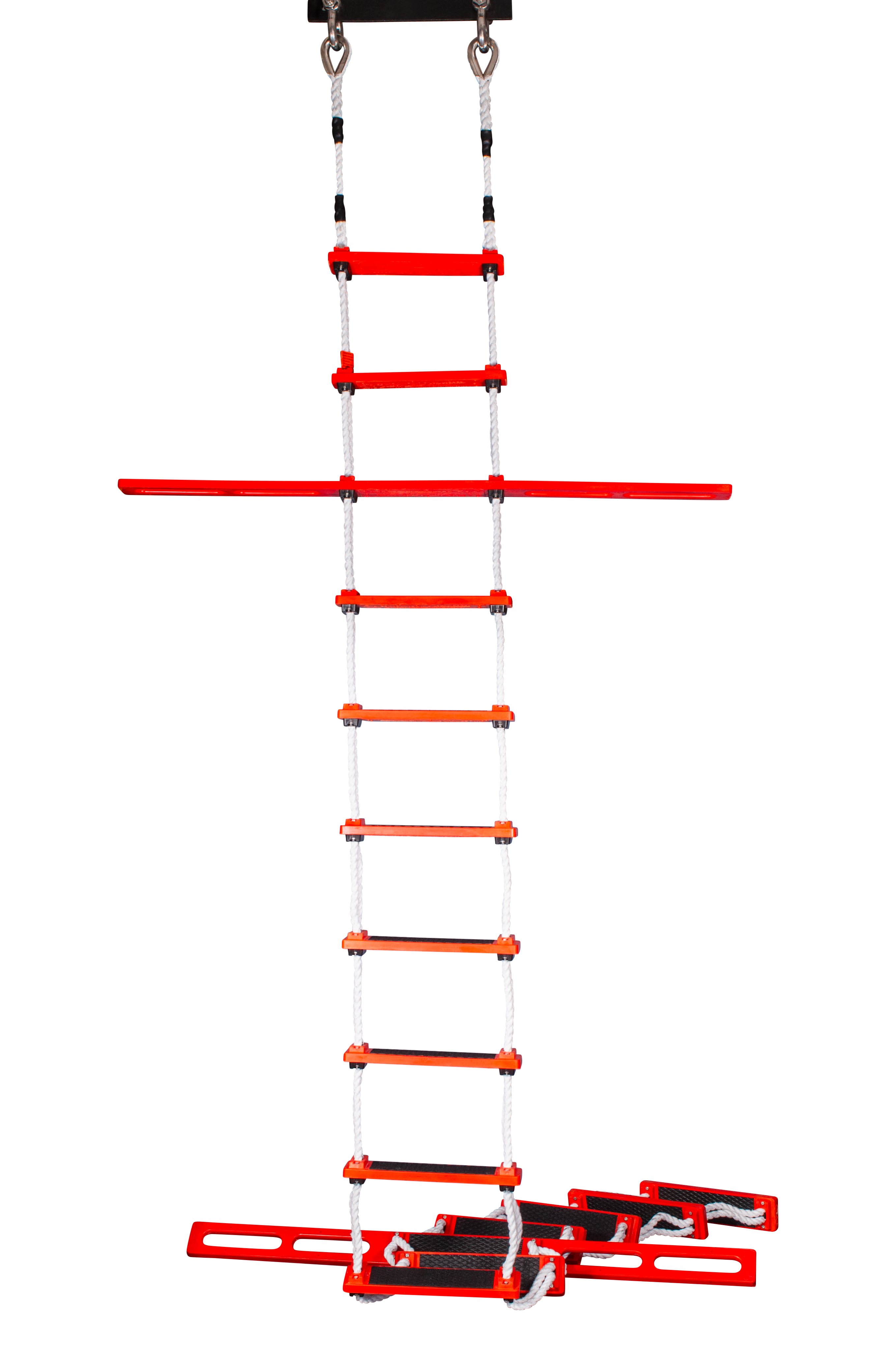

12-1/4 inch Step Spacing

Internal Peripheral Tubular Reinforcement

Buoyant High Impact Elastomer, Especially Forumulated

Ultra Violet Resitant, Safety Orange Color Impregnated Highly Visible, No painting Required, Easy Cleaning

Resists Fractures & Parting Under Severe Conditions

Chemically Bonded Non Slip Abrasive Grit Tread Surface

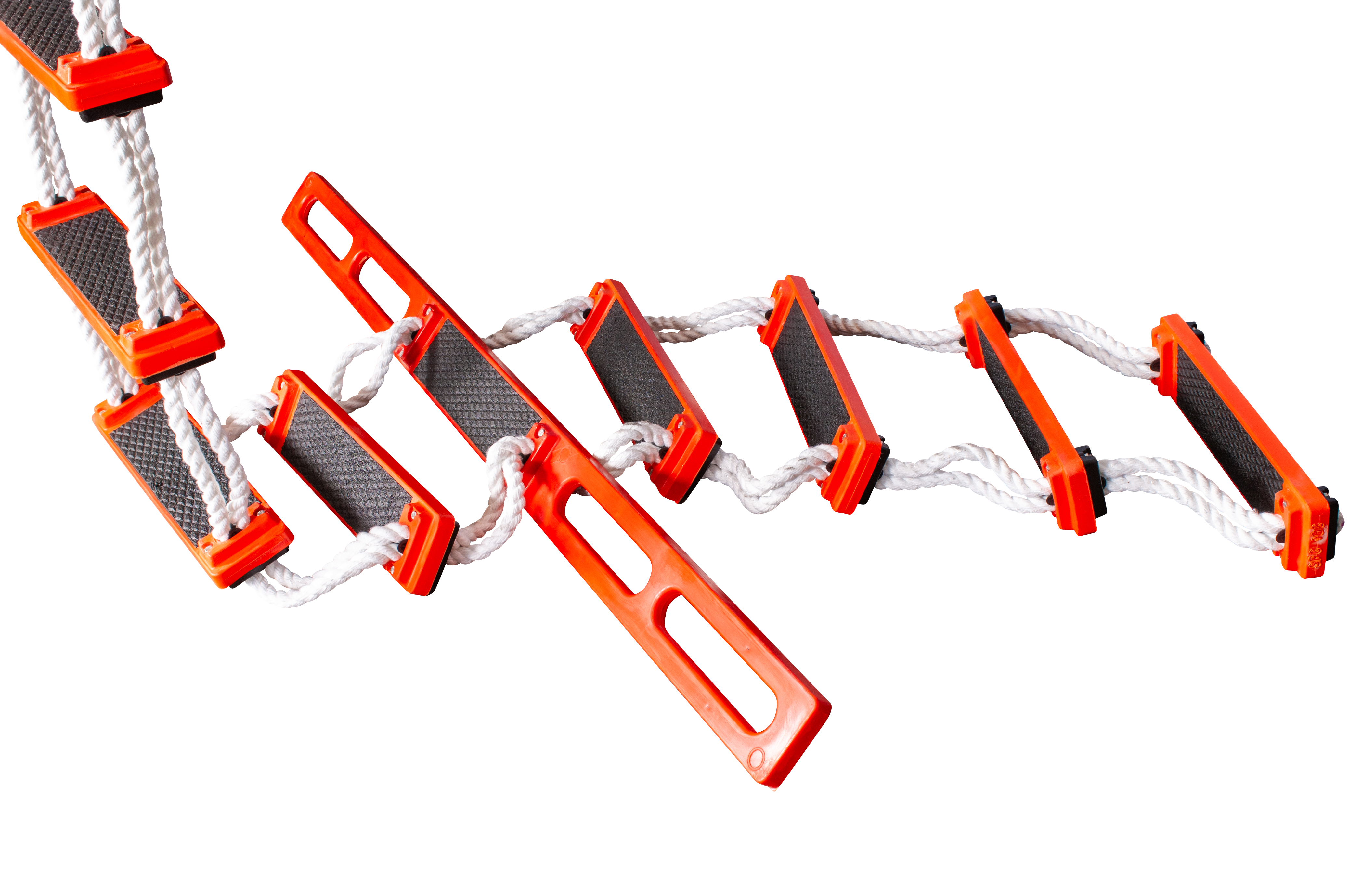

Wind Resistant Spreaders With Hand Holes

Overall Step Size: 20" x 4-1/2" x 1-1/8" (508 x 115 x 28mm)

Spreader Step Batten: 5'10" x 4-1/2" x 1-1/8" (1.8m x 115mm x 28mm)

Distance Between Spreaders: 10' (3m)

Distance Between Steps: 12-1/4" (310mm)

Up to 160 ft

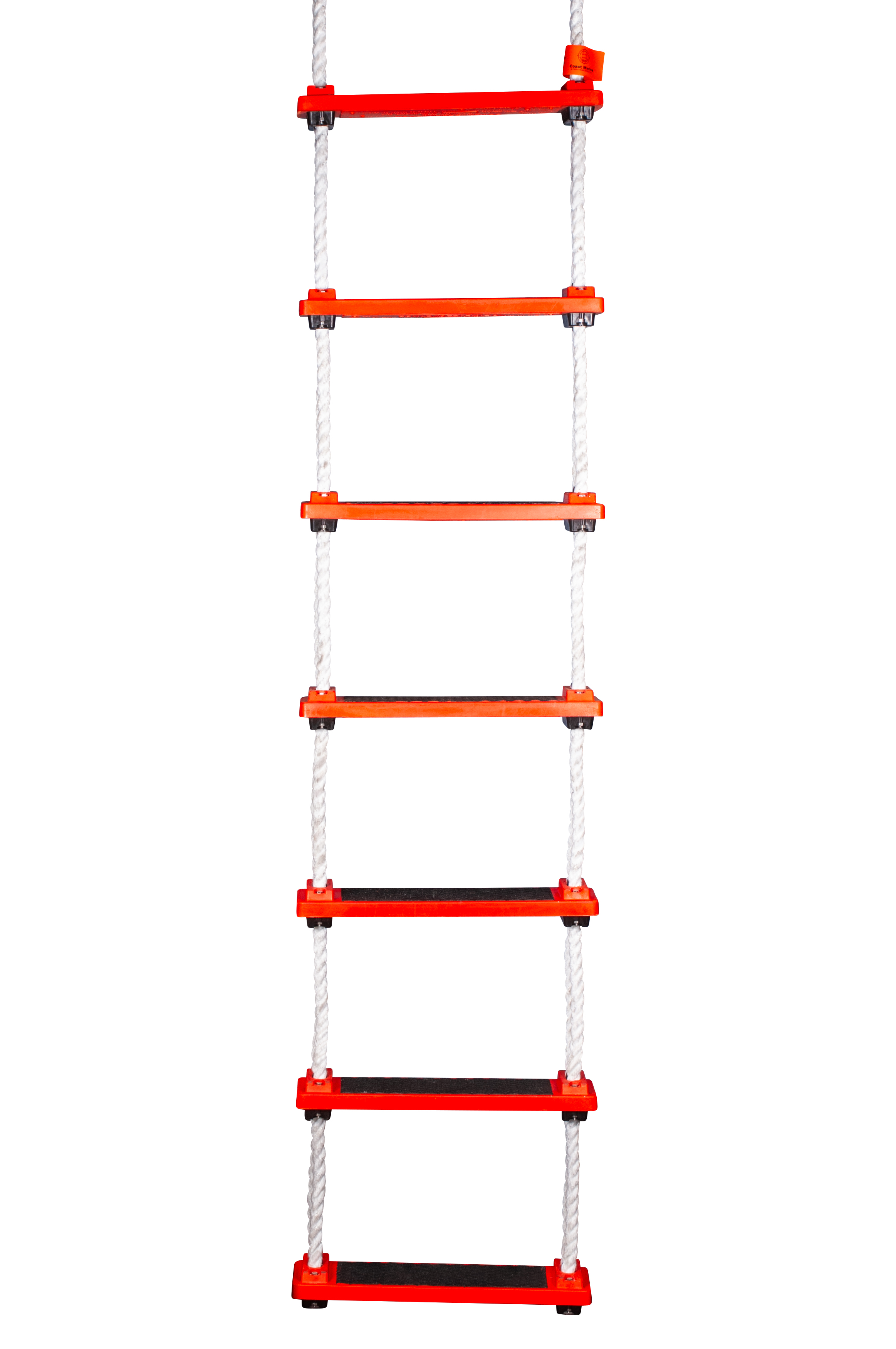

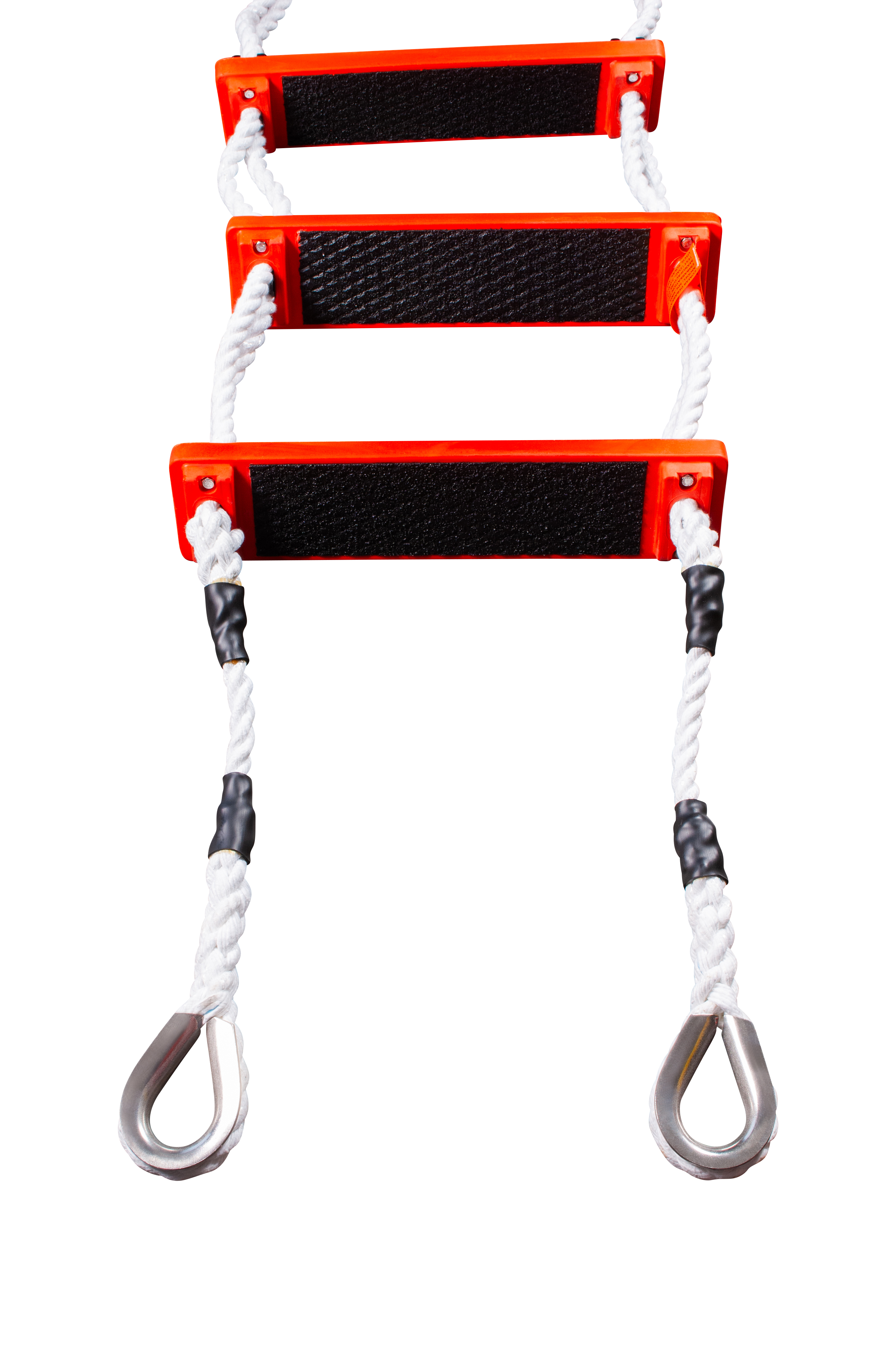

Replaces obsolete old style "Jacob's" Ladder

15 inch Step Spacing, (+/-) 1/4 inch

Not same spacing as Pilot Ladder

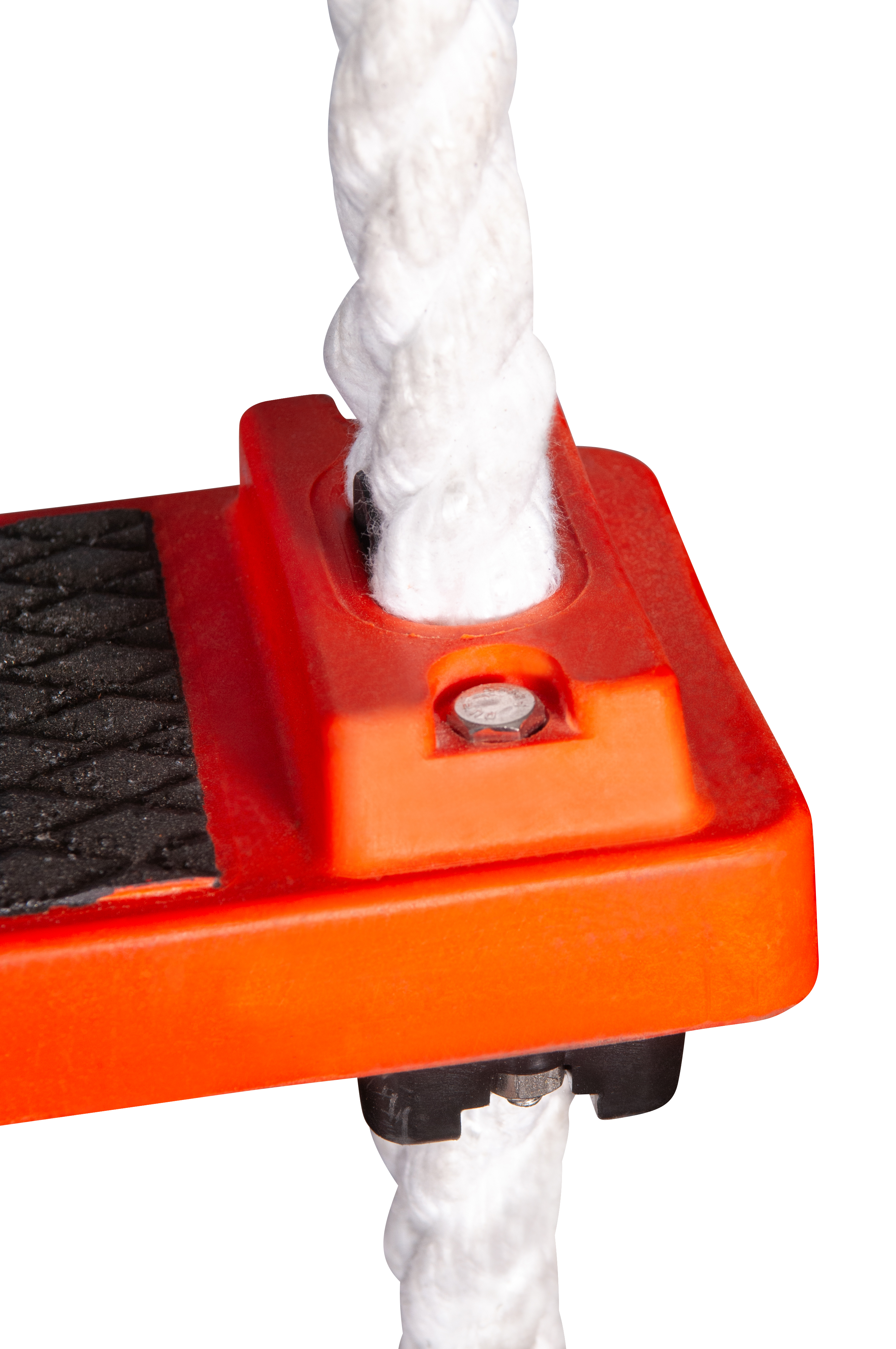

Steps are secured to side ropes using stainless steel fasteners and patented COMAR Wedge Assembly

Uses Debarkation Ladder steps

Rope:2-1/4" circ. (3/4" dia.) 3-strand soft feel polyester ropes over a core of color that contrasts with the ultra strong ropes to eliminate bounce and act as an early warning of wear (14,310lbs Min Breaking Strength)

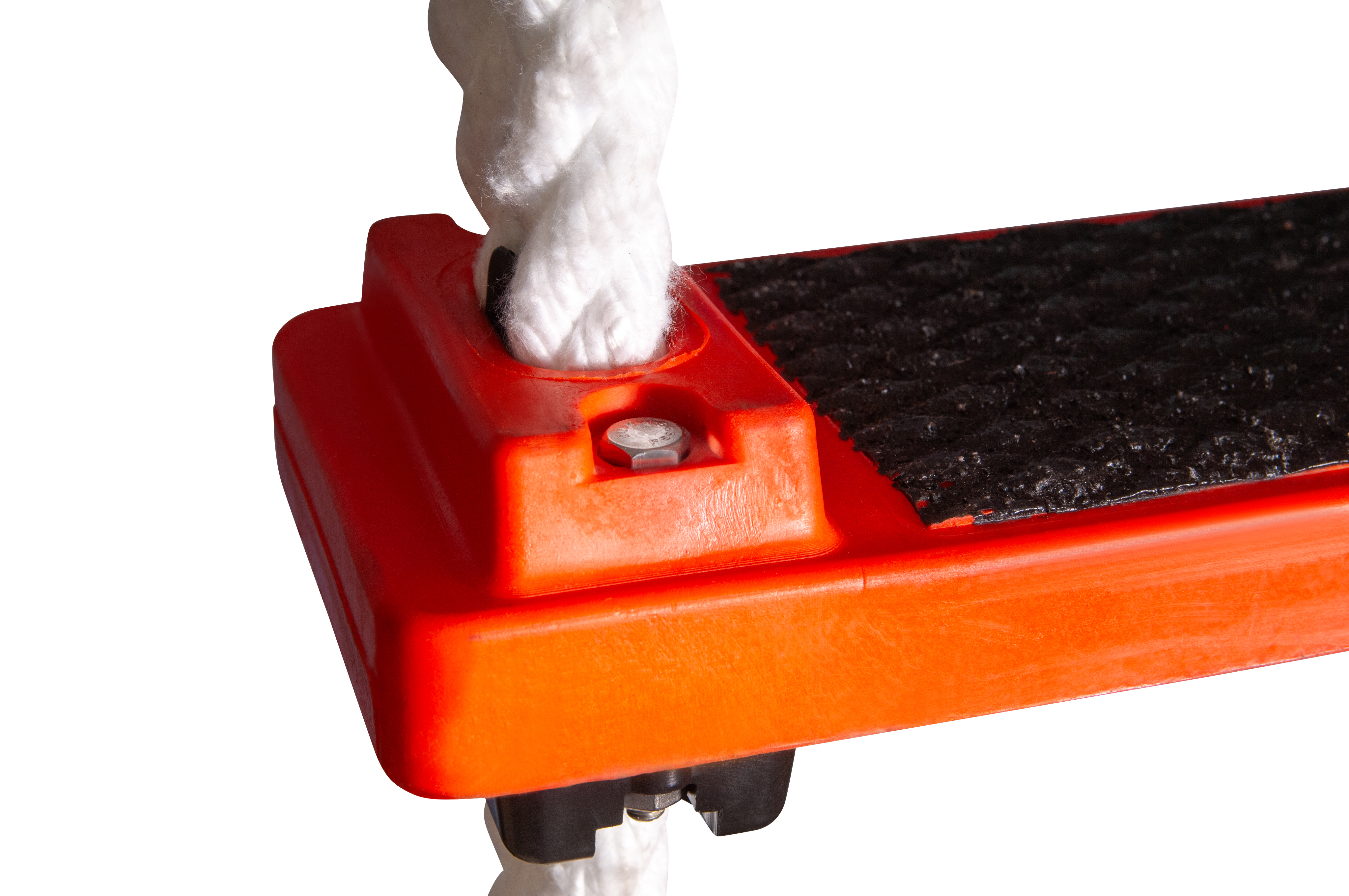

Step: Buoyant high impact elastomer ultra violet resistant safety impregnated, has internal tubular and patented internal collar reinforcement. Top of step has 1/8" raised diamond surface approx 3-3/4" x 14" coated with non-skid abrasive grit and set back from the edges to eliminate cutting of the hands while rigging the ladder on deck.

Eliminate marlin seizings (wippings)

Exceeds 2,000lb required test load by 100%

Half the weight of a chain ladder, rolls easy for stowage, no metal ends to chip paint on deck or hull

Available in standard lengths to 320ft, longer length by special order

Overall Step Size: 20" x 4-1/2" x 1-1/8" (508 x 115 x 28mm)

Distance Between Steps: 15" or 16" (381 or 406mm)

Replaces obsolete old style "Jacob's" Ladder

12-1/4 inch Step Spacing, (+/-) 1/4 inch

Not same spacing as Pilot Ladder

Steps are secured to side ropes using stainless steel fasteners and patented COMAR Wedge Assembly

Uses Debarkation Ladder steps

Rope:2-1/4" circ. (3/4" dia.) 3-strand soft feel polyester ropes over a core of color that contrasts with the ultra strong ropes to eliminate bounce and act as an early warning of wear (14,310lbs Min Breaking Strength)

Step: Buoyant high impact elastomer ultra violet resistant safety impregnated, has internal tubular and patented internal collar reinforcement. Top of step has 1/8" raised diamond surface approx 3-3/4" x 14" coated with non-skid abrasive grit and set back from the edges to eliminate cutting of the hands while rigging the ladder on deck.

Eliminate marlin seizings (wippings)

Exceeds 2,000lb required test load by 100%

Half the weight of a chain ladder, rolls easy for stowage, no metal ends to chip paint on deck or hull

Available in standard lengths to 320ft, longer length by special order

Overall Step Size: 20" x 4-1/2" x 1-1/8" (508 x 115 x 28mm)

Length up to 250 ft. available

12-1/4 inch Step Spacing

14 steps at 14 ft. 7 inches

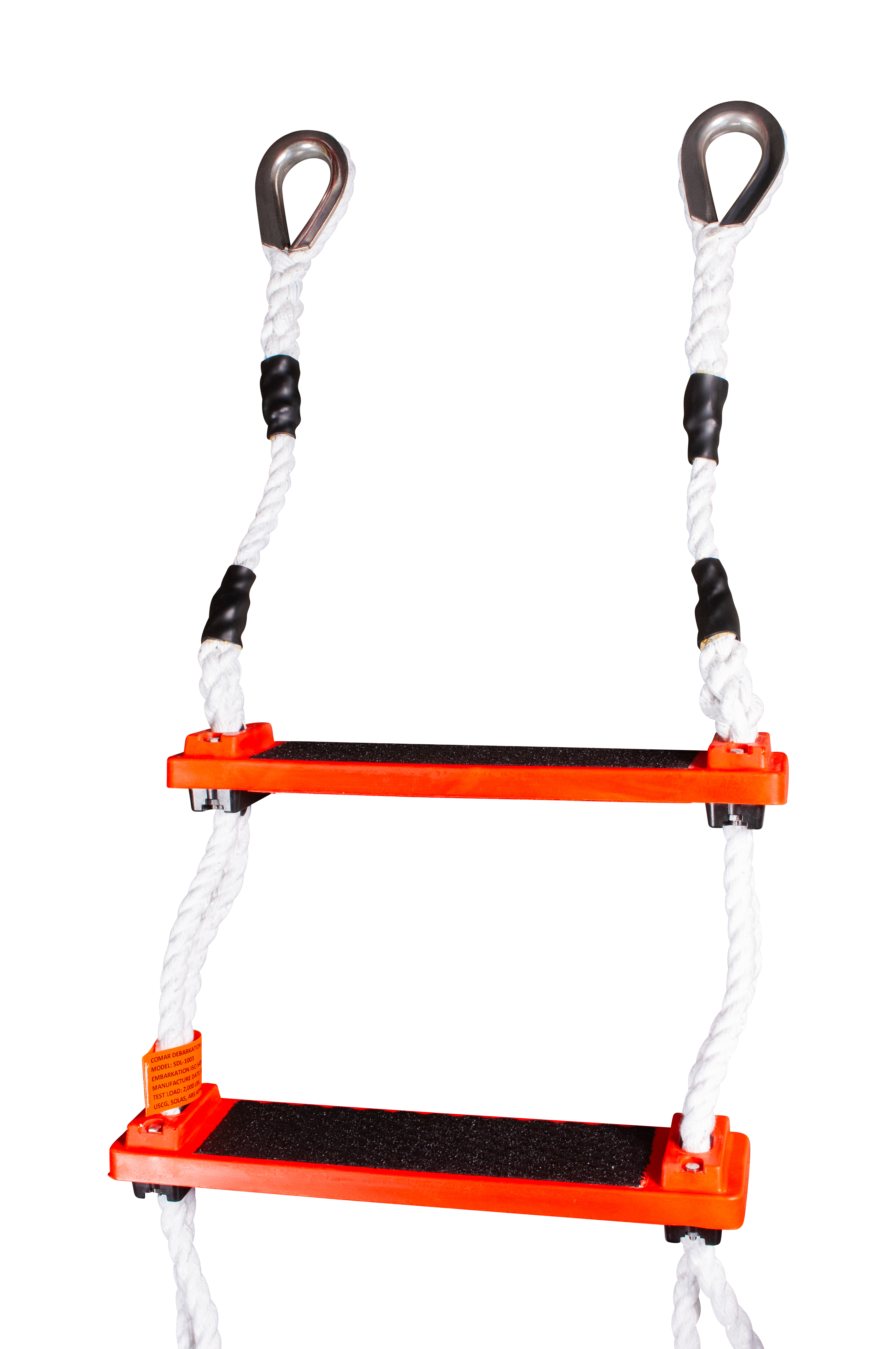

4 St/St thimbles spliced above top step with 2 master links

2 St/St thimbles spliced below bottom step
